290W/M2 7000nits Outdoor Advertising LED Billboards SMD3535

7000nits 290W/m2 Outdoor Advertising LED Billboards SMD3535CC

High Brightness
Durable outdoor SMD led with 5500-7000nits high brightness to match different
occasions;
High Uniformity & Contrast
High quality led lamp and mask for super bright display and high contrast image;
Anti-UV Module
Anti-Oxidation module frame with anti-UV material to protect high temperature
ultraviolet radiation;
IP65 Waterproof Protect
With waterproof tape around the modules, prevent the rain and dust;
Reliable
Over 100000 working hours for longtime use;
Multi-Control Systems
Synchronous and asynchronous systems for option.

Module Parameter

Pixel pitch	6mm
Pixel configuration	1R1G1B
LED type	3-in-1 SMD 3535
Module size	192x192mm
LED lamp	KingLight or Nationstar
Module resolution	32x32dots

Cabinet Parameter

Cabinet size	960x960mm
Cabinet material	Ironed steel cabinet
Cabinet weight	32.5kg
Ingress protection	Front/Rear IP65/IP54

Whole Screen Parameter

Pixel density	27778 dots/m²
Brightness	≥5500 cd/m²
Viewing angle	H≥120° V≥60°
Min.viewing distance	6m
Max.power consumption	900W/m²
Avg.power consumption	330W/m²
Working voltage	110~220VAC±15%
Interface	HUB75
Colors	16.7millon colors
Gray level	65536
Refresh rate	≥1920Hz
MTBF	≥100,000 hours
Lifespan	≥100,000 hours
Protective function	Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc.
Operating temperature	-10℃ ~ +60℃
Storage temperature	-20℃ ~ +60℃

Control System Parameter

Video signal (with video processor)	AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
Color temperature	Adjustable by software
Brightness level	256 levels, automatic adjustment by software
Control way	Computer, video-synchronous, real-time, off-line, wireless, internet etc.

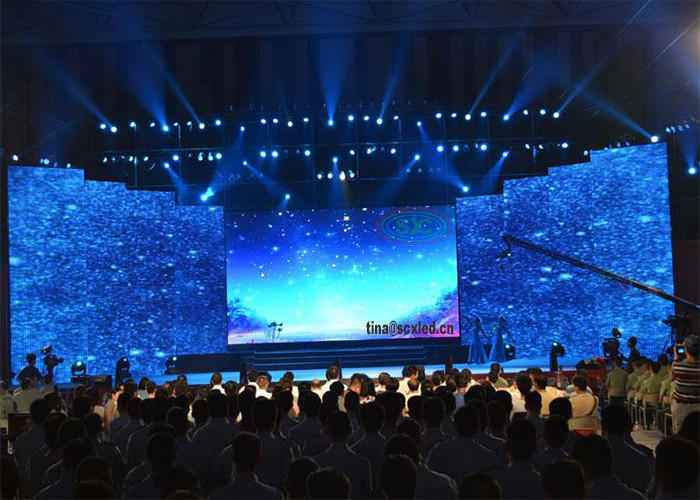

Our case
