Events Shows Outdoor Rental LED Display High Resolution LED Display
LED Display Outdoor Rental Parameter:
| BOR-III-3 | BOR-III-4 |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*75/500*1000*75 | 500*500*75/500*1000*75 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum |
| Single Cabinet Weight | 9/15kg/panel | 9/15kg/panel |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 |
| Average Power Consumption | 75/150 W/panel | 75/150 W/panel |
| Max Power Comsunption | 225/550 W/panel | 225/550 W/panel |
| Operating Temp/Humidity | -20ºC-60ºC/10%-60% | -20ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Brightness | >6,000 nits | >6,000 nits |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Certification | CCC,CE,ETL,RoHS | CCC,CE,ETL,RoHS |
Tipical Applications:
Stage rental, Shopping mall, DJ touring, Theme resort, Car show,
Fahion store, House of worship, Window display, Reception hall,
Opera house, Wedding hall, Events and conference.
Service:
1. Pre-sales service:
1) Our company can arrange professionals to conduct site
installation and debugging in strict accordance with the
requirements of the schemes and the original manual. If there is
any special requirement, it is necessary to make changes of part
installation scheme, we will coordinate with users. Our company can
ensure the consistence of completion time and contracted time. Any
problems caused by natural factors or man-made, we will discuss
with client to find solutions.
2) Our company can train the users based on the manual. The
training include system use, system maintenance and equipment
protection.
2. After-sales service:
1) Service principles: response in time, solve problems as soon as
possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen
body, free of all maintenance charges; After Maintenance period,
only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be
solved, please contact with our company, we can response in 24
hours. In order to shorten the maintenance time, Our Company will
deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible
for the equipment
LED Display Outdoor Rental Feature:
1. Light weight: it can be loaded by one person, quick assembling, quick maintain,
reduce. carrying, save costs.
2. Thin cabinet: the thickness is only 80mm, the space of the screen is small ,
and the entire screen will be more beautiful.
3.Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic
phenomenon effectively. The effect of the display will be more
clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
Tools free installation. Cable-less between modules.
5. Low release heat: low noise, low consumption, low cost, no fan design but excellent
thermal design and excellent thermal dispersion.

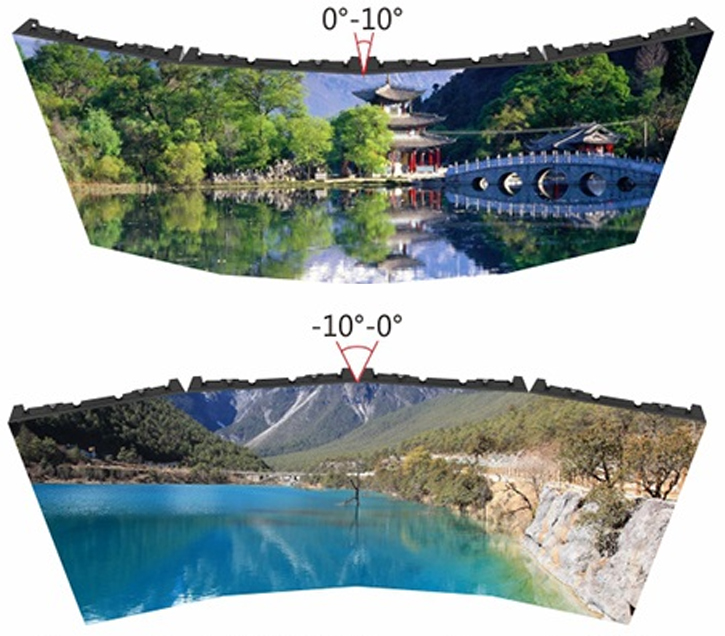

6.Concave and convex setup support: client can asselbly any shape of the led wall display to make
different show effect compare with common led display panel.

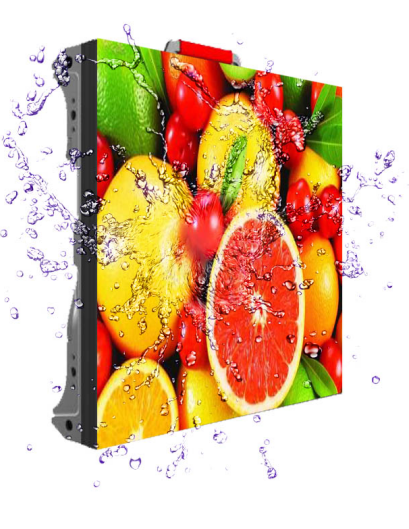

7.Outdoor Rated:out door waterproof with IP65; suitable brightness adjustable for
outdoor day and night; deep black levels, contrast ratio 4000:1.
