Light Weight Transparent LED Video Wall Glass Advertising LED
Display Screen
>> Features
1. Special PCB designed for glass wall LED display specifically
2. High quality LED lamp, power supply and PCB materials to ensure
the lfiespan and stable
3. Transparency reaches upto 70% with high resolution;
4. Light weight, available for the different installation
environment, hanging , standing
5. Over 50% energy saving than traditional LED display, high
efficiency
| Item | arguments |
| Pixel Pitch | 3.9mm |
| Pixel Density | 65,746dos/sqm |
| LED Package | SMD2121 |
| Cabinet Size | 500*500mm |
| cabinet Resolution | 128*128dot |
| Cabinet Materials | Aluminum |
| Cabinet Wegiht | 9kg/pc |
| Brightness | >1000nits |
| Driving Mode | 1/16scan |
Refresh Rate | >1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/60° |
| Viewing Distance | 4-3120m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 350W/sqm |
| Ave. Power Consumptio | 110W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
>> Description
1. Good visualization: Glass-based design allows the light to pass
through the glass without any influence to the building structure
around.
2. Ultra-thin, and ultra-light. the installed glass display takes
very little space and without any increase in the glass wall
loading weight.
3. Frameless structure glass display can directly stick to the
inside part of the glass wall by special designed glue, and it will
connect with the glass wall firmly. Thus decrease the installation
difficulty and cost greatly.
4. Easy and convenient maintenance. It can be maintained from
inside, safer and more convenient.
5. Saving lighting costs of the whole building. Besides good
advertising effect, LED glass display also helps to light the glass
wall.

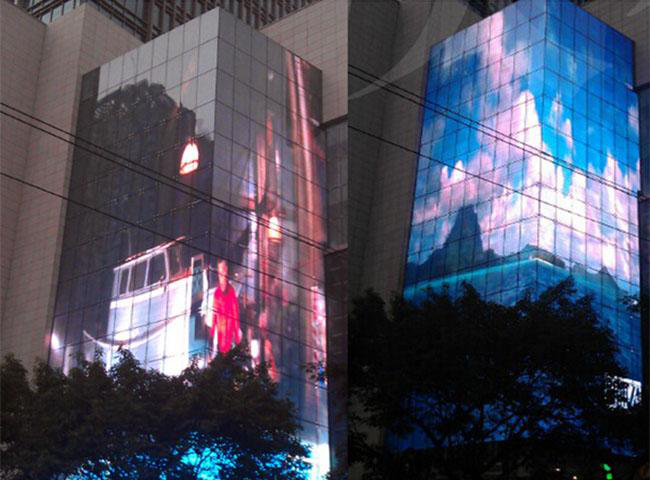

6. Wide use range. Glass wall LED display can be installed in such
as a bank, supermarket, theater, business street, hotel, public
civic buildings, and landmark buildings, etc.
