Large Rental Transparent LED Display Soft Ultra Mince Glass Led
Screen P12 Full Color

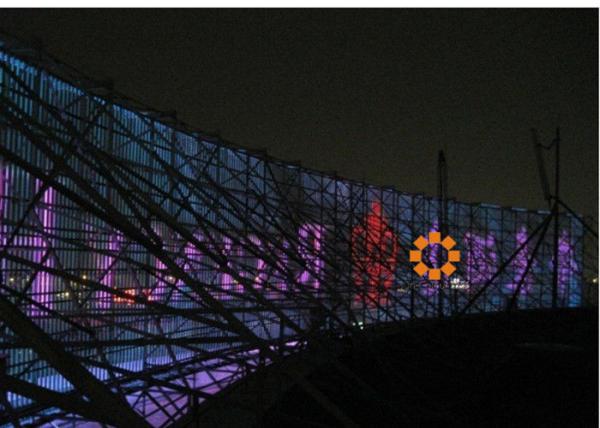

Our Transparent LED Display are widely used in commercial
advertising, indoor led video wall, entertainment industry, stage
events, concerts, financial industry, communications, power sector,
traffic, stadium, plaza, school, airport et., for advertising and
displaying messages.
1. Light, suitable for flow shows, convenient in transporting and
jointing.
2. Nice appearance and secure.
3. Jointed correctly, could be dismounted by one person without
tool
4. High transparency. Light, air and frost could easily cross
through it.
5. Humanized operating interface with breakdown indicator lights.
6. High debugging brightness with 500-2000nit and no damage to gray
scale, matched well with the debugging technology with nice image.
>> Specification
| Pitch/mm | P10 | P12 |
| Pixel Pitch | 10.4166mm | 12.5mm |
| LED type | RGB 3in1 SMD | RGB 3in1 SMD |
| Pixel Density | 9216dots/m2 | 6400dots/m2 |
| Resolution | 96x48dot | 80x40dot |
| Cabinet size | 1000x500x54mm | 1000x500x54mm |
| Weight | 7.5kg | 7kg |
| Waterproof rate | IP43 | IP43 |
| Brightness | 1800nits/1200nits | 1500 nits/1000nits |
| View Distance | ≥10m | ≥12m |
| Viewing Angle (H/V) | 120°/120° | 120°/120° |
| Gray Scale | 14bit | 14bit |
| Color type | 68 Billion | 68 Billion |
| Max.Power Consumption | 200W/PCS | 200W/PCS |
| Ave .Power Consumption | 70W/PCS | 70WPCS |
| Refresh rate | >960HZ | >1000HZ |
| Gamma | -5.0~+5.0 |
| Applied environment | INDOOR |
| Controller | Synchronous display with control PC by DVI |
| Support Input | Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
| Power input | AC90~260 50/60HZ, FSP GROUP |
| Environment | temperature -10°C~+50°C,humidity 10~90% RH |
| Operating Life | 50,000hours |
>> Advantage
1. LED display have good waterproof and anti-humidity when used.
2. Stable cabinet, stronger without distortion, anti-rust.
3. Synchronously adjust the brightness and color to make the true
and exquisite image.
4. High contrast, high refresh rate make the image without any
delay, trailing smear.
5. Compatible to many signal sources such as AV, S-Video, DVI, VGA,
YPbPr, HDMI,SDI,DP etc.
6. Special wooden box package production protect the whole screen
system.
