Outdoor Curved Led Display Screen IP65 Advertising Curved Video
Screen P10mm
>> Features
1. High Stability: Use high quality components and parts and
sophisticated processing technique. Products with stable quality ,
high reliability and long life span.
2. Rich Content: It can show text, chart, graphic, cartoon ,video
and so on.
3. High Refresh Rate: Adopt MBI5124 drive IC (Standard
Configuration). The refresh rate can be as high as 1920Hz, which
can eliminate ghost effect effectively. For rental led display, we
prefer to adopt the MBI5252/ MBI5153 driver IC, the refresh rate
can achieve 3840Hz. The graphics are stable with no wave or black
screen. Video pictures are fine and smooth with clear edges. It has
good dynamic expressiveness which can show the graphic information
exactly/vividly and brings you perfect visual enjoyment.
4. High Resolution: Adopt high pixel density display unit with
micro pitch, which can joint the boards together in any direction,
any size and any shape to easily produce FHD, 4k big screen.
5. Superior Consistency Coupled with Low Brightness and High Gray:
Adopt high quality black LED lamp with black cover. The contrast
can be as high as 3000:1. Pictures are fine and clear with vivid
color.
6. Super-wide view angle: 140°view angle and consistent display
effect at multi direction , no mosaic phenomenon.
7. Advanced control system: Prefer adopting advanced and stable
Nova Star control system, with the best led display control system,
the most advanced pixel-level led display calibration system and
the most professional software for specialized applications.
8. LED Single-lamp maintenance with low cost.
9. Environmental-friendly and energy-saving.
| Item | argument |
| Pixel Pitch | PH10mm |
| Pixel Density | 10,000dos/sqm |
| LED Configuration | Nationstar SMD3535 |
| Module Size | 320*160mm |
| Module Resolution | 32*16 dots |
| Cabinet Size | 960*960mm |
| Cabinet Resolution | 96*96dot |
| Brightness | >5800nits |
| Refresh Rate | >1920hz |
| Viewing Distance | 10-100m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 710W/sqm |
| Ave. Power Consumptio | 255W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Lifespan | >100,000 Hours |
| Operating Humidity | 10% - 95% |
| Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
>> Description

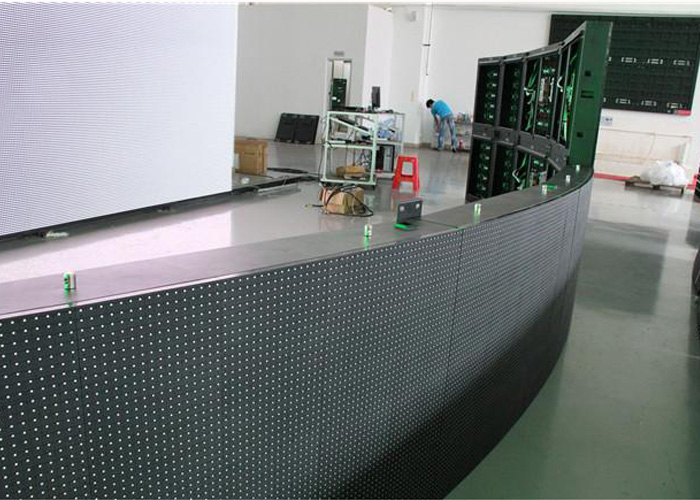

1. Usage : Special Curve design of Hotel, shopping mall, 4s stroes,
etc
2. Installation : Wall-mounted, standing on floor or building Top.
etc
3. Control : Contolled by your computer ,own equipment.; or adopt
wireless controller
4. Connection : Connected to your computer or own equipment.
5. Maintenance: Enough Free spare parts for replacement, front
service easier to change.
