Energy Saving Curve LED Display SMD Flex LED Video Wall 12mm Pixle
Pitch

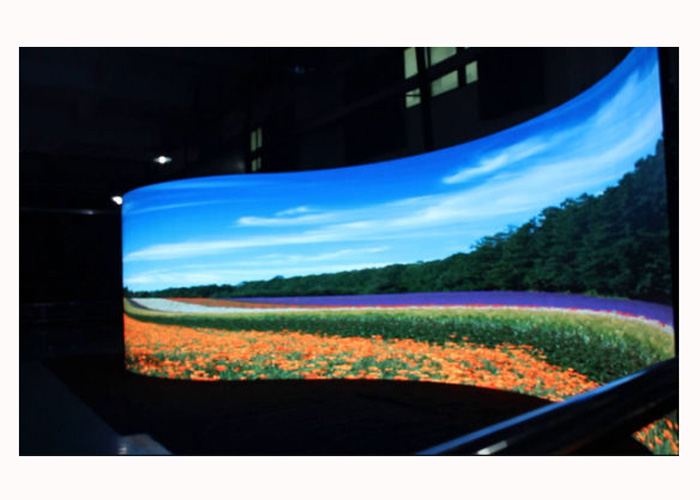

The flexible led screen are designed with easy assembly and good
transparency, outputting a high brightness of up to 5,000 nits with
excellent colour uniformity for great visual effects whether indoor
or outdoor. Now the curtain models add a whole new level of
flexibility with the ability to convert a panel from curtain to
solid display.
flexible led screen are equipped with a specially designed angling
system (with five angle options) enabling build of curved shaped
screens in both horizontal and vertical formats, and in either
convex or concave configuration. You can have the curtain sceens
standing with external frame or being hanged from rigging truss.
With advanced IP65 waterproof protection, curtain series panels are
the smart choice for all rental companies requiring high
flexibility and configurability.
| Pixel Pitch: | 12 mm |
| Pixel Density: | 6944 pixels/m2 |
| Pixel Configuration: | SMD3535(Black LED is available too) |
| Module Dimension: | 288*288 mm |
| Panels Dimension: | 576*576 mm |
| Panels weight: | 11 kg/panel |
| Panel Material: | Aluminum profile |
| Performance Parameter |
| Brightness: | >5000nits |
| Best Viewing Distance: | > 12m |
| Average Power Consumption: | 350 w/m2 |
| Max Power Consumption: | 850 w/m2 |
| Scan Mode: | 1/2 scan |
| Viewing Angle: | Horizontal: 120 degree, Vertical: 120 degree |
| Gray Scale Level: | 14 bit |
| Refresh Rate: | >2200Hz |
| LED Lifetime: | >50,000 hours |
| Environment Parameter |
| Input Voltage: | 110/220/240v AC, 50/60Hz |
| Operating Temperature: | -20°C~60°C |
| Operation Humidity: | 10%~90%RH |
| Ingress Protection: | Front IP65, rear IP54 |
| Control Parameter |
| Control System: | NOVA / LINSN |
| Compatible video interface: | YC, VGA, DVI, YUV, SDI, RGB, CVBS, HD-SDI |
>> Features
1) Reliable quality, advanced and mature technology, compliant with
industrial
standards and technology developing trend
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid,
complete and high
quality LED display to TV broadcasting signal
4) High resolution and definition of screen image, clear and
non-flash screen
>> Products Advantages
1) Price Advantage: we have the best competitive price at the
market; also have the same even better quality;
2) Performance Advantage: Best Equality, high consistency, Big
viewing angle, can repair each led lamps;
3) Quality advantage: From material to finished product, from
design to produce, we control all steps that are the guarantee of
the quality and reliability;
4) Service advantage: Better service at same situation, better
cooperation at same service.
