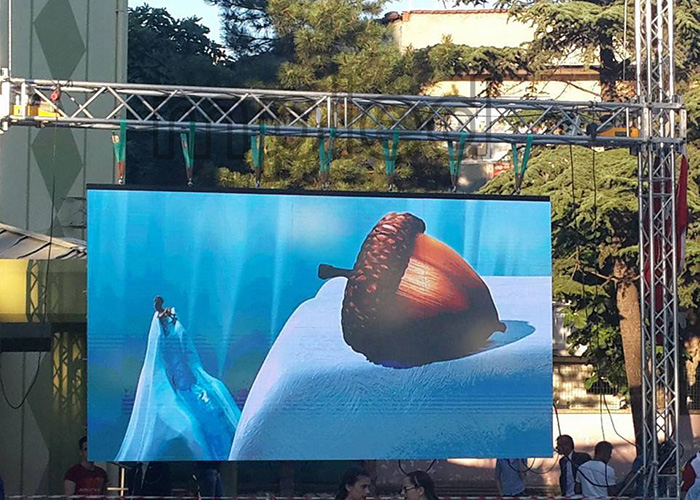

4mm Pixel Pitch SMD Rental LED Display Solutions For Concert /
Stage / Events
Our Led display use the Die-Casting Aluminum Cabinet LED screen
adopts die-casting aluminum cabinet, which makes many new
performance advantages.
The cabinet size is 576mmx576mm with light weight. It could be
carried by one hand, could be installed quickly within 10 Seconds.
The cabinet adopts die-cast Aluminum material with only 65mm
thickness, advantages in high strength, excellent ductility, good
precision and is difficult to deform.
1. Low power consumption
2. User friendly computer system
3. Wide viewing angle ,excellent white color balance
4. Fast and easy to assemble and dismantle.
5. High grayscale (15 bits) with perfect visual performance.
6. High reliability and long lifespan (MTBF ≥ 10000 hours).
>> Specification
| Pixel Dot Pitch | 4.0mm | Output Voltage | 5V | Weight | 0.24 ±0.05Kg |
| Pixel Constitution | 1R1G1B | PCB Power | ≤12W | Material | Polycarbonate |
| Dimenssion | 128*128*12mm | Pixel Density | 62500/sq.m. | Max current | 2.5A |
| Structure Characteristic | LED board and driver doard in one PCB | PCB Resolution | 32*32=1024 | Drive Mode | 1/16 Constant Current Drive |
| | | | | |
| Cabinet Dimenssion | 512*512*80mm | Cabinet Material | Iron or Alumunium |
| Cabinet Resolution | 128*128=16384 | Cabinet area | 0.26sq.m. |
| Max Power Consumption | 240W | Average Power Consumption | 100W |
| Cabinet Weight | 8KG | Defense Rate | IP65 |
| | | | | |
| Brightness | ≥1300CD/sq.m. | Brightness Homogeneity | >0.95 |
| Viewing Angle-Horizontal | 120±10° | Viewing Angle-Vertical | 120±10° |
| Horizontal Flatness | <0.5mm/sq.m. | Vertical Flatness | <0.5mm/sq.m. |
| Max Power Consumption | ≤800W/sq.m. | Average Power Consumption | ≤400W/sq.m. |
| Best Sight Distance | ≥4m | Environment | indoor |
| | | | | |
| Grey Scale(linear) Levels | 12-16bit | Colour | 16777216 |
| Frame Frequency(HZ) | ≥60FPS/Second | Rereshing Frequency | ≥480HZ |
| Control Instruction | Control with PC,Real-Time display,
Video Synchronization. | Brightness Adjustment | 256Auto/MT |
| Input Signal | DVI/VGA,Video,RGBHV,Composite Video Signal ,S-VIDEP,YpbPt(HDTV) |
| | | | | |
| Actual Life | ≥100000 Hours | MTBF | ≥1000Hours |
| Attenuation Rate (after 3 years) | ≤20% | Continuous Malfunction Dot Rate | None |
| Discrete Malfunction Rate | <1/10000, None at factory | Blind Spot Rate | <1/10000, None at factory |
| Working Limits | -20-50°C | Humodity Limits | 10%-90%RH |
| Defense Function | Overtemperature/Overloaded/Power-fail/Overcurrent/Overpressure/Lightning
protection/Correction Technology |
>> Advantage
1. Compact & easy operation design
2. Integrated complete electronics in the panel
3. 30°curve-able Tile
4. Individually dismantle led panel design
5. Neutrik push-pull data & power connector
6. Light Weight
7. Highly transparent
8. Both outdoor&indoor application
9. High brightness&color contrast
