| Brand Name : | DDW |
| Model Number : | DDW-S3P1669 |
| Certification : | CE/ROHS/FCC/UL/ISO/3C |
| Payment Terms : | Bank T/T transfer, Western Union |
| Supply Ability : | 6000sqm/month |
| Delivery Time : | 7-20 days |
| Price : | Negotiable |

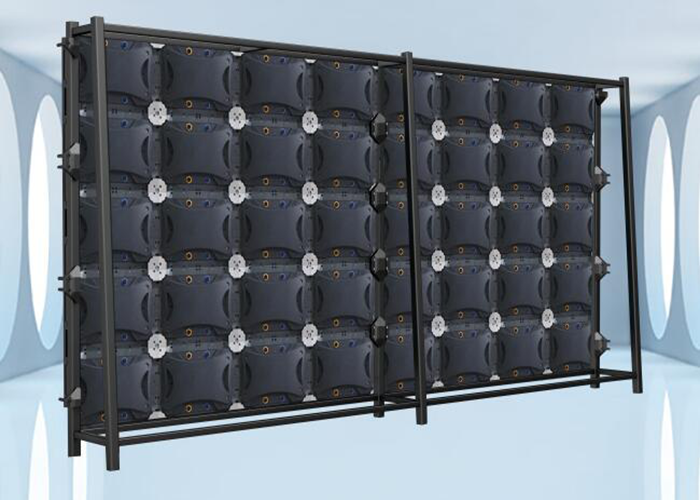

Energy Saving Small Pixel Pitch LED Display Wall Mounted With 3840
Hz Refresh
>> Features
1. H3840hz refresh and high resolution to play 4K video smoothly
2. Black nationstar led lamp to improve the contrast ratio to be
4000:1
3. Different installation way, standing, wall-mounted,
4. Front access die casting cabinet. can be rear and front access
cabinet.
5. Same Cabinet can be P1.56, p1.66, p1.923
| Item | parameters |
| Pixel Pitch | 1.667mm |
| Pixel Density | 360.000dos/sqm |
| LED Package | Nationstar black SMD1010 |
| Module Size | 200*300mm |
| Module Resolution | 120*180dot |
| Cabinet Size | 400*300mm |
| Cabinet Resolution | 240*180dot |
| Cabinet Wegiht | 4.55kg/pc |
| Viewing Angle | 140°/140° |
| Viewing Distance | 1.6-60m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 815W/sqm |
| Ave. Power Consumption | 255W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Input Source | All Format (HDMI, SDI, DVI,AVI, MPEG,VOB, RM, etc) |
>> After Sales Service
1. More than 1 years warranty
2. Free factory training
3. 24/7H online support
4. Lifetime free repair and technical support


|   |
