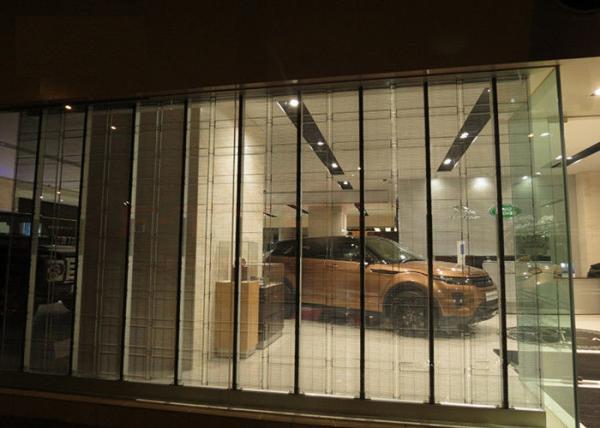

High Definition Transparent LED Display Panel , Shopping Malls
Clear LED Screen
>> Fields and places of application:
– Outdoor advertising
– Stadiums and other sport facilities
– Malls, banks and automobile sales centers
– Airports, rail and bus stations, other facilities of transport
infrastructure
– Entertainment centers, casinos, night clubs, restaurants
– City information systems
– Architecture
– Show business and mass shows events
>> Technical Specification:
| Item | Specification |
| Module | Pitch/mm | P6.9 |
| Module size/mm | 250x250 |
| Density of pixel/(dots/m2) | 20,736 |
| Pixel composition | 1R1G1B |
| Led encapsulation | SMD3528 |
| Resolution of module | 36x36 |
Main
| Optimum viewing distance | ≥7 |
| View angle / ° | 140 H,120 V |
| Average power consumption/W/M2 | 120 |
| Max power consumption/W/M2 | 240 |
| Size of cabinet/mm | 500x1000 |
| Resolution of cabinet | 72x144 |
| Weight of cabinet/kg | 12 |
| Driving method | 1/9 scan constant current |
| Frame frequency / Hz/S | ≥60 |
| Refresh rate Hz/S | ≥1200 |
| Luminance of white balance | ≥1500 nits |
| Operation of Environmental Temperature/°C | below 30 to above 50 |
| IP rating | IP43 |
| Working vlotage | 110-220 VAC/+/- 10% |
| Grey scale/color | displaying colors≥16.7M(synchronized) |
| Brightness adjustment | 256 levels of each color(manually),100 levels of each
color(automatically) |
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
| Control system | (sending card,receiving cards and Hubs) |
| Average of non-failure life | >50,00h |
| Life span | >100,000h |
| Functionaless dot rate | <0.0001 |
1). Ultra light weight: Average weight is of 5kg/M2, it is40kg/M2
less than that traditional LED Display
2). Portable:Be rolled up vertically as a column, easy to pack and
transport
3). Easy installation:Hang it up as a curtain installation to save
90% installation cost than that of traditional LED Display
4). Low power consumption:The power consumption of soft led display
is less than half of traditional LED Display
5.) the LED display can be fold, curve and rolled freely like a
newspaper, easily installation and transportation
6.) water proof, fire retardant
7.) easy transportation and instalation
