P14 Full Color Advertising LED Display SMD Module Cabinet Ultra
Thin For Publics

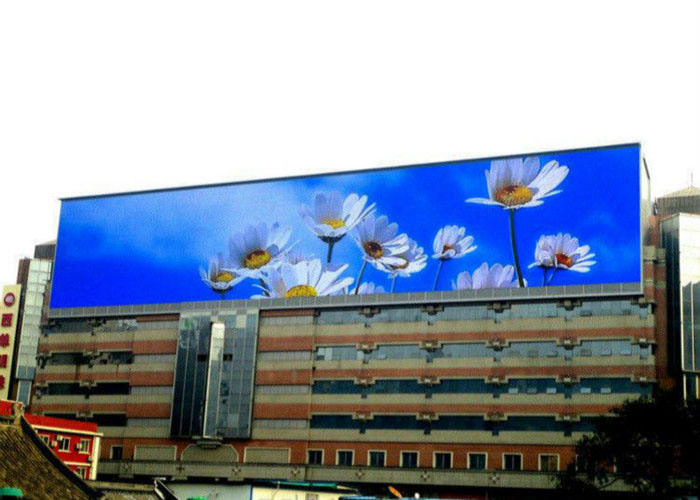

P14 Advertising LED screens Displayadopts physical and virtual
pixel technology which makes the picture more clear and vivid, no
flicker and blind dots. The Advertising LED screens Display is
manufactured in a waterproof and dustproof design so it can work
very well under rain and sunshine. It can be assembled,
disassembled and repaired very easy, it is an ideal product for any
kind advertisements. Wide application field: advertising LED
display, stadium perimeter LED display, mobile led display for
mobile media, shopping mall LED display for logo showing, bank &
stock exchange LED display for rates showing, train & bus station,
airport, telecommunication LED screen system for information
showing and instruction, stage performances and so on.
>> Features
1) Reliable quality, advanced and mature technology, compliant with
industrial
standards and technology developing trend
2) Good heat emission, water proof and stable performance
3) Audio and video interface of the system can offer vivid,
complete and high
quality LED display to TV broadcasting signal
4) High resolution and definition of screen image, clear and
non-flash screen
5) Supports video and radio frequency input, special structure can
be freely
assembled
6) Widely used in stadium, bank, restaurant, station, shopping
center,
government, schools, entertainment, and enterprise
| Specification | PH14 |
| 1 | Pitch | 14mm |
| 2 | Module Resolution | 16×8=128(dot) |
| 3 | Module Size | 224mm×112mm |
| 4 | Module Quantity/cabinet | 24(Pcs) |
| 5 | Cabinet Size | 896mm×672mm |
| 6 | Resolution/cabinet | 64×48(dot) |
| 7 | Density | 5102(dot/s.q.m) |
| 8 | LED Driving method | Constant driving / 1/2 Scan |
| 9 | LED Standard | DIP546 |
| 10 | Viewing Angle (H/V) | H:100±5°V:45° |
| 11 | Brightness | ≥7000CD/s.q.m |
| 12 | The Optimal viewing distance | 15-200m |
| 13 | Display Colors | 687(million) |
| 14 | Pixel configuration | 1R1G1B |
| 15 | Protection Degree | 65(IP) |
| 16 | Power | (Max.Consumption): True pixels:1000 W/s.q.m |
| (Average Power): True pixels:450 W/s.q.m |
| 17 | Control mode | Video Sync |
| 18 | Display Mode | (Max)1024×768/1280×1024 |
| 19 | LED Parametres | (R):λd (619~624nm)IV: (460~510mcd) |
| (G):λd (520~524.5nm)IV: (2000~2300mcd) |
| (B):λd (468.5~472.5nm)IV:(490~540mcd) |
| 20 | Rate | ≥300Hz |
| 21 | Communication | 1000M Cats(≤120M)/Fiber optical (10.000m) |
>> Product Advantages
1) Price Advantage: Best competitive price of the market.
2) Performance Advantage: Best brightness, High refresh rate, high
consistency, Big viewing angle...
3) Quality advantage: From material to finished product, from
design to produce, we control all steps, that's the guarantee of
the quality and reliability.
