3.91mm Pitch 3000nit SMD2121 LED Advertising Video Walls
Product Feature:
1) Super-light weight and Ultra-thin: only 7.5 kg in weight for
500x500mm panel, 80 mm in thickness
2) With special designed mask and plastic frame , the surface is
very smooth and viewing angle is very large .
3) With driver IC MBI 5124 , it's of high refresh rate of 1920
hHz/s . The driver IC can be upgraded to ICN2038 with a refresh
rate over 3840 Hz/s
4) With fast lock system, easy to install and dismantle;
5) Flexible installation ,can be stacked on floor or hung on truss;
6) Front service module ,can be taken off from front for
maintenance
7) The same panel is compatible with P2.84, P3.91,P4.81,P5.95 and
P6.25 outdoor and indoor LED
display .
Module Parameter:
| Pixel pitch | 3.91mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD2121 |
| Module size | 250x250mm |
| Module weight | 0.35kg |
| Module resolution | 64x64dots |
| Module quantity per cabinet | 4pcs |

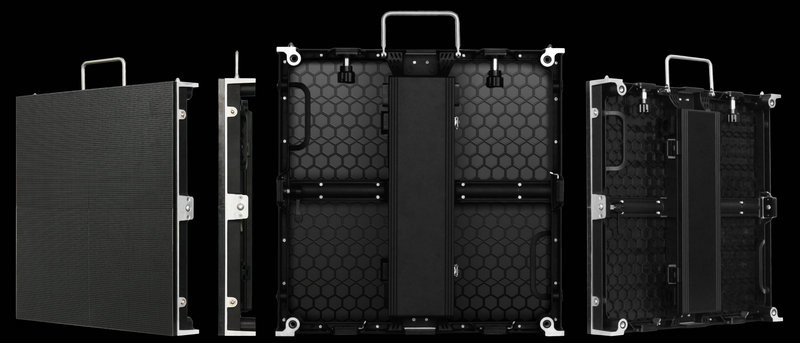

Cabinet Parameter:
| Cabinet size | 500x500mm |
| Cabinet material | die- casting aluminum |
| Cabinet weight | 6.5kg |
| Cabinet resolution | 128x128 dots |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter
| Pixel density | 65410dots/m² |
| Brightness | ≥1200 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 3.9m |
| Max.power consumption | 890W/m² |
| Avg.power consumption | 330 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 65536 |
| Refresh rate | ≥1920Hz |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000 hours |
| Operating temperature | -10℃ ~ +60℃ |
| Storage temperature | -20℃ ~ +60℃ |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, internet etc.
|
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
