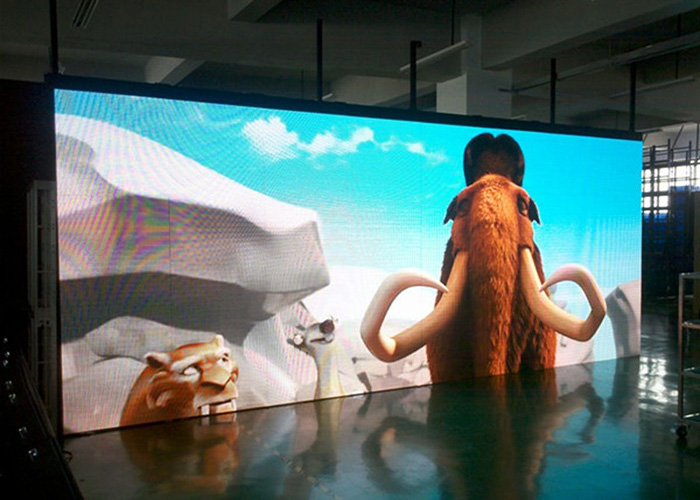

Slim Indoor Full Color Led Screen 4.8mm Pixel Pitch High Definition
LED Display
>> Detailed Product Description
PH4.8mm Slim Aluminum High Definition Fullcolor SMD Advertising
Video Rental Indoor Led Display Screen
1. Lightweight. Convenient in transporting and installing & saving
labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person
without tool.
4. Humanized operating interface with breakdown indicator lights,
easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving
the debugging technology for nice image.
>> Technicail Specification
| Items | Parameter |
| Pixel Pitch | PH3.9mm | PH4.8mm |
| Module Resolution(W*H) | 128(W)*128(H) | 104((W)*104(H) |
| Pixel Configuration | 1R1G1B(in 3 n 1) |
| LED Encapsulation | Black SMD 2121 | Black SMD 3528 |
| Pixel Density | 65536 Pixel /m2 | 43264 Pixel /m2 |
| Driving Method | 1/16Scan | 1/13Scan |
| Refresh Frequency | ≥2880Hz | ≥2880Hz |
| Driver IC | Special constant current IC with high refresh rate & high grey
scale |
| Grey Scale | 14Bit(depending on the system and Configuration |
| Cabinet Size | 500*500mm |
| White balance Brightness | ≥800cd/ m2 ≥800cd/ m2 | ≥800cd/ m2 |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 140° Vetical 120° |
| Optimal Viewing Distance | >4m | >5m |
| Working Voltage | AC 220V/110V ±10% |
| Module voltage | DC4.2V |
Max Power Consumption /per module | 100W/PCS | 120W/PCS |
Avg.Power Consumption /per module | 50W/PCS | 60W/PCS |
| Lifetime | 50000hours |
| Operating Temperature | –10℃ ~ 65℃ | –10℃ ~ 65℃ |
| Net weight | 3.5 Kg/pcs | 3.5Kg/pcs |
>>Main Features
1) LED: well-known brand, with wide viewing angle, high brightness, little
attenuation,
good heat dissipation, and vivid colors.
2) Driving IC: avoidable the defective phenomena, such as dark bright, virtual
light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of
20% the space,
the range of voltage fluctuation is less 5%, high stability.
