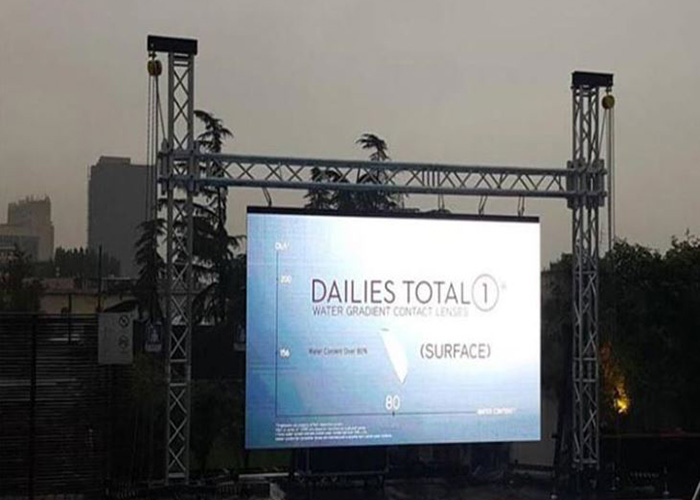

Largest Outdoor Rental LED Display Curtain High Definition Video
Screen IP67 P20mm
>> Products function introductions
1) High intensity and can be adjusted, so can meet the request of
the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have
the excellent consistency of light
3) To pictures and character, have clear, exquisite and real
display effect
4) Big viewing angle to 120 degree at horizontal line, 160 degree
at vertical line, you can see at every angle at this range, no
picture change, no color excursion
>> Products application area
1) Full colorRental LED Display : Equally or compactly make the
red, green, blue color in one dot, equally distribute at the panel,
so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock
exchange, station, port, marketplace, telecommunication,
department, school, monitor, restaurant, entertainment, meeting
room
>> Specification
| P20 Outdoor LED Screen |
| S/N | Module Specification |
| 1 | Pixel Pitch | 20mm |
| 2 | Pixel Configuration | 2R1G1B |
| 3 | LED Type | DIP546 |
| 4 | LED Wavelength | R(620-630nm) IV(600-800mcd)
G(520-525nm) IV(1800-2000mcd)
B(465-470nm) IV(400-600mcd) |
| 5 | Pixel Density | 2500 pixel dots/s. q. m |
| 6 | Module Size(W X H) | 320mm x 160mm |
| 7 | Module Resolution( W X H) | 16 pixel dots x 8 pixel dots |
| 8 | Input Voltage(DC) | 5V +/- 5% |
| 9 | Cabinet Specification |
| 10 | Cabinet Size(W X H) | 1280mm x 960mm |
| 11 | Cabinet Resolution(W X H) | 64 pixel dots x 48 pixel dots |
| 12 | Unit Cabinet Weight | 65kg(without packaging) |
| 13 | Thickness | 165MM |
| 14 | Whole Screen Specification |
| 15 | Screen Brightness | Min. 5500nits/s. q. m |
| 16 | Driving Mode | Constant current static state |
| 17 | H/V Visual Angle | 110 deg. /50 deg. |
| 18 | Minimum Viewing Distance | 20m |
| 19 | Max. Power Consumption | 750W/s. q. m |
| 20 | Average Power Consumption | 600W/s. q. m |
| 21 | Gray Level | 4096 levels |
| 22 | Frame Frequency | Min. 60Hz |
| 23 | Refresh Frequency | Min. 400Hz |
| 24 | Blind Spot Rate | Max. 1/10000 |
| 25 | Protective Scale | IP65 Front |
| 26 | Screen Plainness | Max. +/- 1mm |
| 27 | Power Supply Mode | AC220 +/- 10% 50Hz/AC110 +/- 10% 60Hz |
| 28 | Environment Temperature & Humidity | Temperature -20 Celsius degree~+60 Celsius degree
Humidity 10%~90% RH |
1). It's soft, foldable, very easy and convient for installation ,
the weight is very light, you don't need to make truss or cabinet
to install this screen,
it likes a thin plastic sticker, you can stick or pin ( nail ) it
on wall and ceiling. Many of our customers stick this screen on bus
or bus station for advertising.
2). The led light is super bright, the brightness can reach 5000CD,
the ordinary P20mm led screen can only reach about 2000CD.
You can display very clear images or video on the screen even at
daytime, it's visible under daylight.
3). The dimension of each unit is 1meter x 1 meter, if you wanna
make a large screen, you can connect many units together to form a
big screen.
