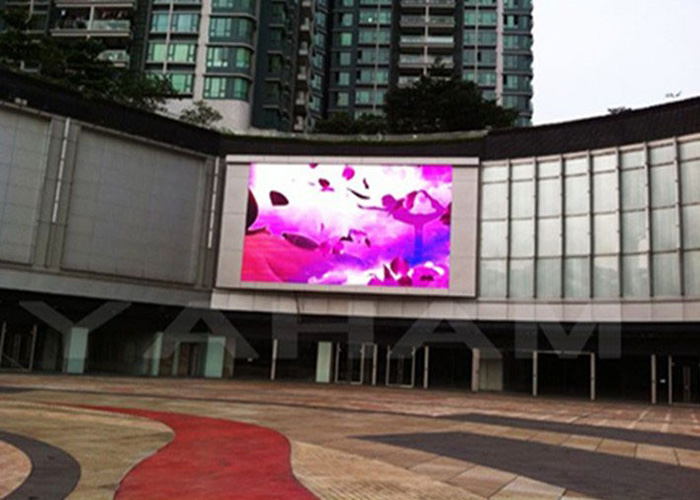

SMD P10 Outdoor Full Color LED Display Wall , Energy Saving
Exterior LED Screen
>> Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are
comprehensive, and also we have three display mode as VGA+VIDE and
VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7
millions, and the brightness, contrast, saturation, chroma can be
adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video,
2-dimention, 3-dimention cartoon and other information with your PC
does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content,
and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent
capability of antisepsis, waterproof.
>> Spec Parameters
| PLED-OF-10 Module Parameter |
| Dimensions(w*h) | 160mm*160m | Resolution(W*H) | 16×16 |
| Pixel Pitch(mm) | 10mm | Pixel Density | 10000 Pixels/m2 |
| Pixel Configuration | 1R1G1B | Tual Pixel Density | |
| PLED-OF-10 Cabinet Parameter |
| Dimensions(w*h*d) | 960mmx960mmx150mm | Max Power/m2 | 780W |
| Physical Resolution(w*h) | 96x96 | Module Quantity | 36 |
| Weight/Cabinet | 65kg | Physical Pixels(total) | 9216 |
| Average Power/m2 | 260W | Material | Steel |
| PLED-OF-10 Display Parameter |
| Parameter | Value | Gray Scale | 4096 |
| Brightness(calibrating value) | ≥7500 | Weight | 65kg/ m2 |
| Red Wavelength(dominant) | 623nm±1.5nm | Colors Capability | 30bits |
| Green Wavelength(dominant) | 525nm±1.5nm | Refresh Rate(PAL/NTSC) | 1000HZ |
| Blue Wavelength(dominant) | 470nm±1.5nm | Minimum Frame Rate | 300HZ |
| Brightness(max/min) | 1.1:1 | Drive Type | Constant current drive |
| View Angle (min, 50% brightness) | Horizontal 160(+80/-80)deg. Vertical 60(+30/-30) | Scan Type | 1/4 SCANING |
| Recommended Min. Viewing Distance | 14 | Control | Simultaneous with PC,pixel to pixel |
| Brightness Control | 256 | Input Voltage | AC220V/50Hertz or AC110V60Hertz |
| Date Transmission | UTP<100m, Multi-mode Optical Fiber <500m; Single-mode Optical
Fiber<5000m | Color Temperature | Brightness of Red, Green and Blue adjustable by the software 100
grade. Color Temperature adjustable according to requirement |
| Digital Processing | 12 | Defects Rate | ≤0.00001 |
| MTBF | >10,000 hours | Life Span(50% Brightness) | >100,000 hours |
| Module Brightness Uniformity | <5% | Flatness | ±1mm |
| Ingress Protection | IP65 | Ventilation | Quite running fans |
| Earth Leakage Current | <2mA | Operating Temperature Range | -40degree-- +60degree |
| Display Input Format(With Video Processor) | DVI, VGA, S-Video, DVD, VCD, VHS. | Operating Humidity Range | 10%~99%RH |
| System Operation Platform | WINDOWS(WIN98, WINXP, WIN2000) | | |
>> Advantage of led display
1) Wide viewing angle: The horizontal and vertical viewing angles
are so wide that it is suitable for the environment of wide
Horizontal
2) High contrast ,High refresh rate and High brightness that the
content on the display remains clearly visible under direct
sunlight without any delay, smear phenomenon.
3) The brightness can be adjustable to meet the need of changing
requirement of customer in environment
4) Energy saving and environment protection, antistatic,
dust-proof, good heat dissipation, cost-effective .
5) High reliability: using distributed scanning technology and
module design technology that make higher reliability and
stability.
6) Favorable effect: using dot to dot calibration technology makes
the image clearer and the layering stronger
7) Steady and reliable system, with strong anti-interference
ability and long service life that can continually work for over 24
hours,and it’s easy to operate the system.
8) Convenient installation and maintenance of display modules
