Plaza Outdoor Full Color LED Screen DIP P10 P8 P6 LED Video Wall
2R1G1B Light Weight

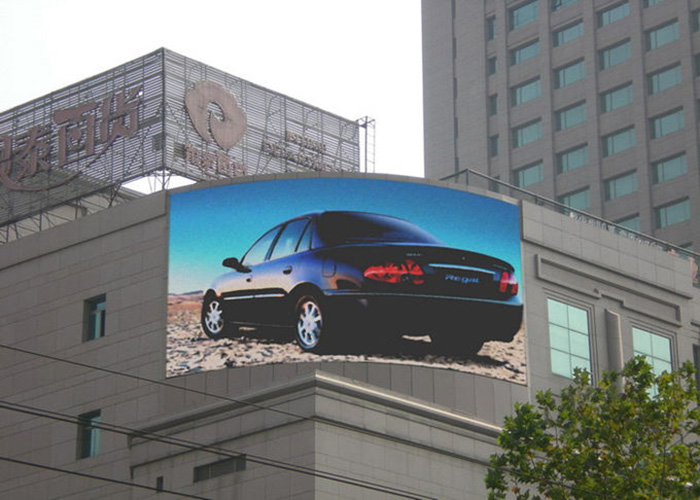

P10 outdoor LED modules are widely used for outdoor LED advertising
displays.Its unique features are programmable and animation. Users
can input anything they like and let it animate,moving.
Display functions are rich: moving
text,image,logo,graphic,flash,date,time,clock,temperature,humidity...
Driver is very easy to use. Users can program by themselves.
Working voltage is DC 5V,so it is safe for people.It is no problem
for people to touch it even when the display is working.
Bright,nice-looking,easy to catch eyes,safe... all these features
make LED displays are more and more popular with people all over
the world.
>> Specifications for outdoor led display
| Specification | PH8 | PH10 | PH12 | PH16 | PH20 |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Density of pixel | 1/4 scan | 1/4 scan | 1/4 scan | Static | Static |
| Module Resolution | 32*16(W*H) | 16*16(W*H) | 16*16(W*H) | 16*8(W*H) | 16*8(W*H) |
| Pixel density | 15625 | 10000 | 6400 | 3906 | 2500 |
| Pixel Pitch | 8mm | 10mm | 12mm | 16mm | 20mm |
| Best Viewing Distance | 6~12m | 8~15m | 10~20m | 12~24mm | 16~30mm |
| Module Size(mm) | 320*160 | 160*160 | 192*192 | 256*128 | 320*160 |
| Cabinet Size(mm) | 960*960 | 960*960 | 960*960 | 1024*768 | 960*960 |
| Weight | 55Kg | 55Kg | 55Kg | 47Kg | 55Kg |
| Working Voltage | AC220/110 ± 10%, 47~63Hz |
| Waterproof Rate | IP65 |
| Maxim Power | ≤780W |
| Average Power | ≤450W |
| Viewing Angle | Horizontal:≥ 120° Vertical:≥60° |
| Brightness | ≥8000 nits |
| Working Temperature | -20ºC to +60ºC |
| Operating humidity | 20% to 90% |
| Lifespan (50% Brightness) | 100,000 hours |
>> Advantage
1. Automatic brightness control,super processing ability,strong
colour restoration.
2. Support various interfaces and signal sources.
3. Advanced digital control technology, excellent effect.
4. High brightness,even in direct,full-on sunlight to ensure you
attract more audience to get short ROI of your full color outdoor
led display screen's investment.
5. Antiseptic and durable, can be used outdoor in all weather.
