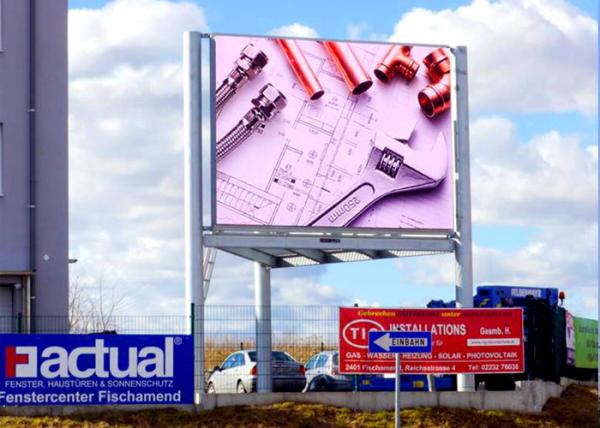

Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display

    Buy cheap Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display from wholesalers

    Buy cheap Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display from wholesalers
    • Buy cheap Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display from wholesalers
    • Buy cheap Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display from wholesalers
    • Buy cheap Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display from wholesalers

    Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display

    Ask Lasest Price
    Brand Name : DDW
    Model Number : DDW-LEDFE
    Certification : CE/ROHS/FCC/UL/ISO/3C
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    Outdoor P10mm Fixed Installation 800x1200mm Waterproof aluminum Cabinet LED Display For Outside Street Led Display

    MAXIMUM DEFINITION AND HIGH PERFORMANCE
    Led displays provide a sharp, bright and clear image
    in certain distances; guaranteeing a low energy
    consumption.
    ADAPTABLE TO ANY SPACE
    The modular panel system allows you
    to create unique displays and experiences
    visually stunning anywhere.
    EASY ASSEMBLY AND INSTALLATION
    You can assemble our LED screens in a
    comfortable and simple way. They do not
    require additional machinery, no complex tools



    Front and rear maintenance
    Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and
    disassemble easily and quickly.


    Front maintenance guide


    Hot-swapping technology
    Hard connection supports full front access

    Quick lock for easy installation
    Steel material fast lock system +High precision aluminum
    alloy cabinet frame fast installation, but perfect flatness splicing

    P4.16P5P6.25P8.33P10
    SMD typeSMD1921SMD1921SMD2727SMD2727SMD2727
    Physical density(dots/sqm)5760040000256001440010000
    Module resolution96X7280X6064X4848X3640X30
    Module dimension400X300400X300400X300400X300400X300
    Module quantity(W×H)2X3 / 2x42X3 / 2x42X3 / 2x42X3 / 2x42X3 / 2x4
    Panel resolution(W×H)192X216 / 192X288160X180 / 160X240128X144 / 128X19296X108 / 96X14480X90 / 80X120
    Panel size(mm)800x900 / 800X1200800x900 / 800X1200800x900 / 800X1200800x900 / 800X1200800x900 / 800X1200
    Flatness(mm)≤0.015≤0.015≤0.015≤0.015≤0.015
    Maintenance modeFront & RearFront & RearFront & RearFront & RearFront & Rear
    Brightness(nits)65006500650065006500
    Color temperature(K)3200-9300 optional3200-9300 optional3200-9300 optional3200-9300 optional3200-9300 optional
    Grey scale6553665536655366553665536
    Viewing angle(V/H)160°/ 160°160°/ 160°160°/ 160°160°/ 160°160°/ 160°
    Contrast ratio5000:01:005000:01:005000:01:005000:01:005000:01:00
    Frame-changing frequently50/60Hz50/60Hz50/60Hz50/60Hz50/60Hz
    Drive modeConstant currentConstant currentConstant currentConstant currentConstant current
    1/6 scale1/6 scale1/6 scale1/3 scale1/2 scale
    Refresh rate38403840384038403840
    Max power consumption(W/m2)600-800600-800600-800600-800600-800
    Avg. power consumption(W/m2)100-200100-200100-200100-200100-200
    Electric power requirementsAC90-264VAC90-264VAC90-264VAC90-264VAC90-264V
    47-63Hz47-63Hz47-63Hz47-63Hz47-63Hz
